Chapter 4 — Desktop GUI tour

Launching thclaws with no arguments opens the native desktop app: a wry webview wrapping a React frontend that talks to the same Rust agent core as the CLI. This chapter is a guided tour of the main window — read it once so you recognize every UI region when you need it.

If you only ever use the terminal REPL, you can skim this chapter and move on. Everything the GUI does is also available via slash commands.

First-launch setup — the first time you open thClaws you’ll see two modals in sequence (pick a working directory, then pick where API keys are stored). Both are covered in chapter 3. This chapter assumes you’re past them.

The main window — layout

• Tab bar (top) — Terminal, Chat, Files, optional Team. Window title shows the current project.
• Sidebar (left column) — four collapsible sections covering active provider + model, saved sessions, attached knowledge bases, and configured MCP servers.
• Active tab content (right) — whatever tab you’re on: a live terminal, a streaming chat, a file browser, or the team view.
• Status bar (bottom) — current working directory on the left, gear icon for Settings on the right.

Sidebar (left column)

The sidebar is always visible and holds four sections:

Section	Shows	Actions
Provider	Active provider + model, ready/not-ready dot	Click to open API keys
Sessions	Last 10 saved sessions (title or ID)	+ to start a new session · hover row → pencil to rename · click to load
Knowledge	Every discoverable KMS with attach checkbox	+ to create a new KMS — see chapter 9
MCP Servers	Active MCP servers + their tool count	Read-only here — configure via /mcp add

The Provider section has a visual health indicator:

• 🟢 green dot + normal text: provider ready to use
• 🔴 red dot + ~~strikethrough~~ + “no API key — set one in Settings”: provider has no credentials

When a key is saved via Settings, the dot flips to green and the active model may auto-switch to the first provider with credentials — see chapter 6.

Tab bar

Four main tabs, plus the settings gear on the right.

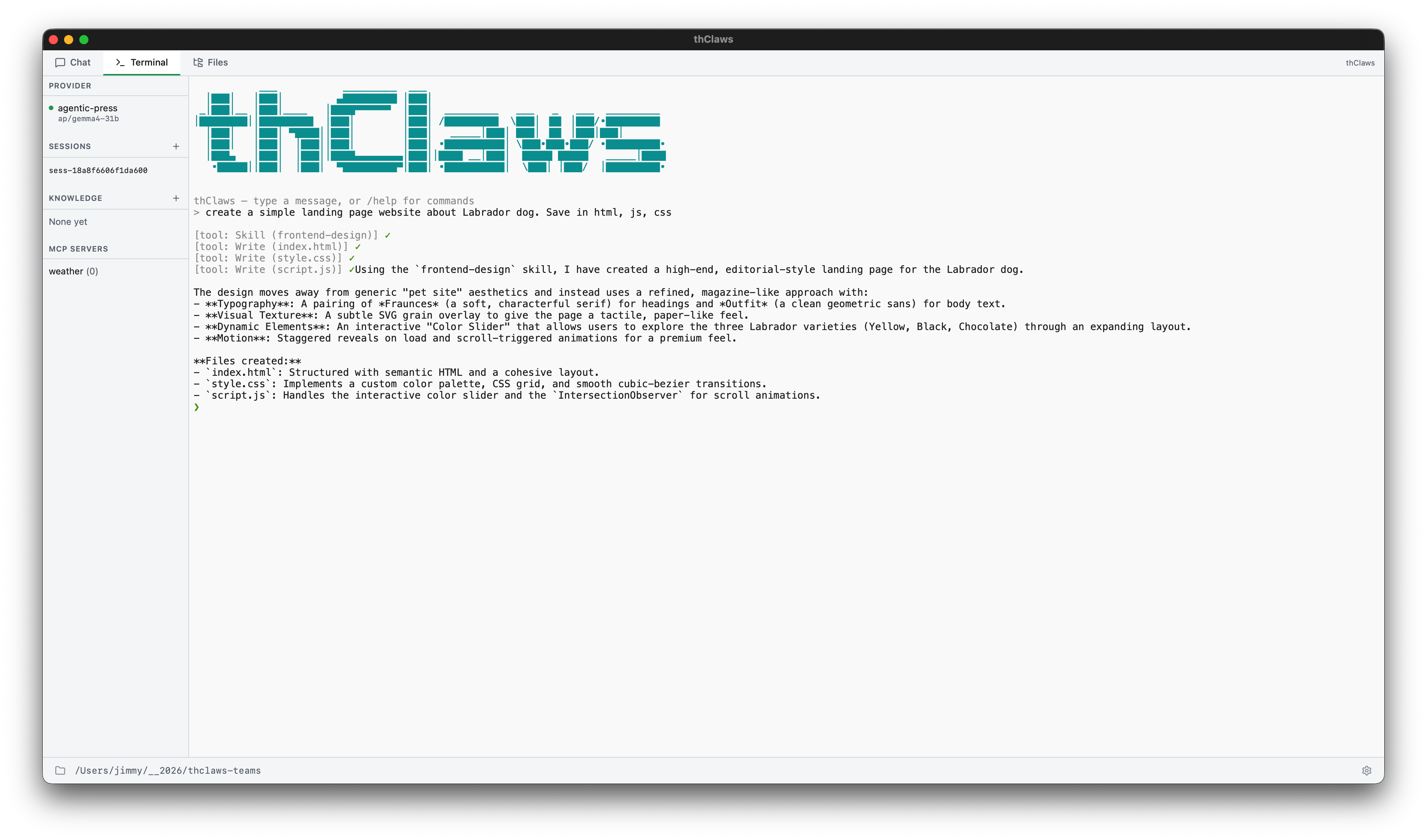

1. Terminal tab

An embedded xterm.js terminal running thclaws --cli (the same REPL you get from the CLI). Keystrokes go through a PTY bridge to the child process; output streams back via base64-encoded frames.

Key behaviors worth knowing:

• Copy / paste — Cmd+C / Cmd+V (macOS) or Ctrl+Shift+C / Ctrl+Shift+V (Linux/Windows). These go through a native arboard IPC bridge because wry blocks navigator.clipboard.
• Ctrl+C is context-sensitive: if the current typed line is non-empty, it clears the line (like Ctrl+U in bash); if the line is empty, it passes through as SIGINT.
• Resize — the terminal size follows the window, propagated via portable-pty resize.
• Ctrl+L clears the screen.

2. Chat tab

A streaming chat panel that shares history with the Terminal tab (same agent, same session). Messages render as Markdown; tool calls show collapsible [tool: Name] blocks; token usage appears after each assistant response.

Use the Chat tab when you prefer a conversational UI; use the Terminal tab when you want to see raw output and run slash commands.

3. Files tab

A filesystem browser rooted at the working directory. Click a file in the tree to open it in the right-hand pane; click the pencil icon next to the path to switch to edit mode.

Preview mode (default):

• .md files — rendered to HTML server-side (GFM tables, task lists, strikethrough, autolinks, footnotes), displayed in a sandboxed iframe. Raw HTML inside markdown is stripped before rendering.
• .html files — rendered in the same sandboxed iframe.
• Code files (.js, .ts, .tsx, .py, .rs, .go, .java, .cpp, .php, .json, .yaml, .sql, .xml, .css, and more) — syntax-highlighted via CodeMirror 6 in read-only mode, with line numbers, bracket matching, and a search panel.
• Images and PDFs — inline preview.
• Plain text / config files (.txt, .log, .env, .conf, .ini, .toml, .sh, Dockerfile, …) — plain <pre> block.

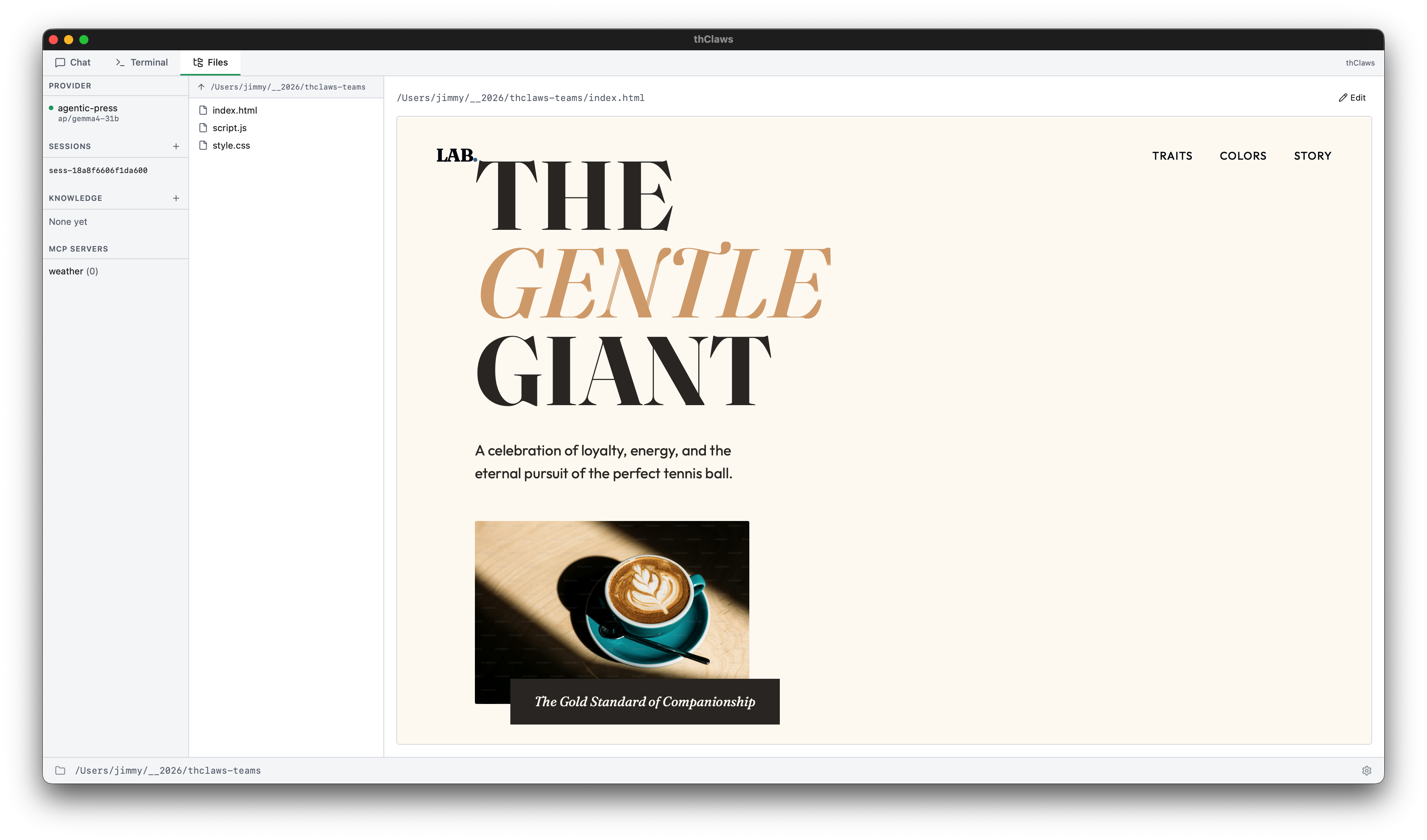

.html files render live in the sandboxed iframe, so you see the page as a browser would — styles, images, and interactive JS intact:

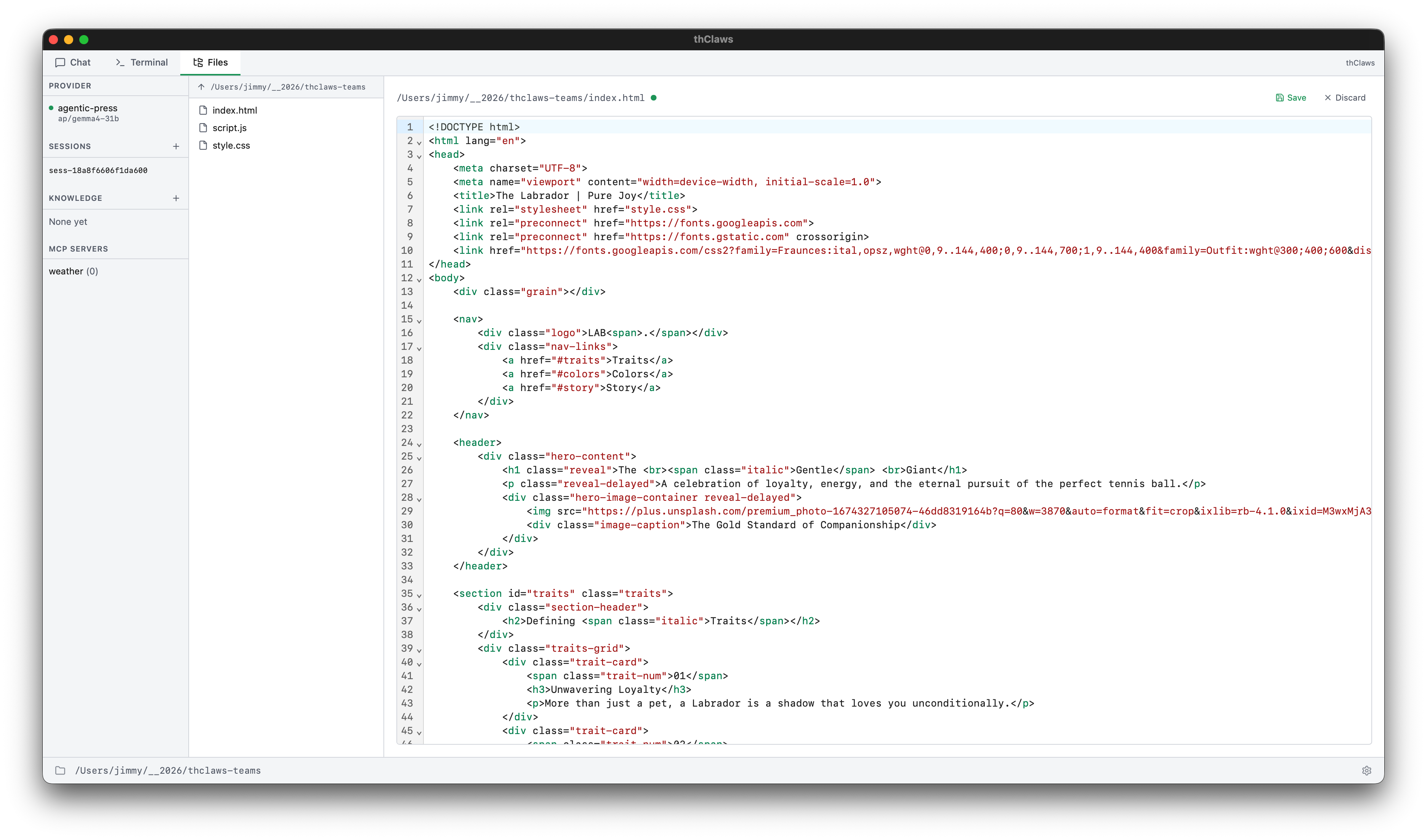

Edit mode (pencil icon):

• Markdown opens in a TipTap WYSIWYG editor — the same round-tripping editor used for AGENTS.md in the Settings menu.
• Code files open in CodeMirror 6 with per-language syntax highlighting, bracket matching, undo history, and a search panel. The language is picked from the file extension.
• A filled dot (●) next to the filename marks unsaved changes. The Save button is disabled until the buffer is dirty.
• Cmd/Ctrl+S saves. A green “saved” or red “save failed: …” toast confirms.
• Discard (shown while dirty) / Preview (shown while clean) exits edit mode. Clicking Discard pops a native OS confirm dialog (“Discard / Keep editing”) before dropping edits.
• Clicking a different file in the sidebar while dirty also pops the same native confirm — save or discard before navigating away.
• Auto-refresh polling pauses while you’re editing, so a concurrent Write/Edit tool call from the agent can’t clobber your in-progress buffer.

Files are written through the same working-directory sandbox the agent uses, so edits stay inside the project tree. User-initiated saves do not go through the agent approval prompt — the Save button is your approval.

4. Team tab

Always present. When no team exists it shows an empty-state pointer (“No team agents running — ask the agent to create a team”). Once the agent calls TeamCreate, each teammate gets its own pane in this tab — click a pane to focus, scroll to browse history, type into it to send input. The agent only has access to the team-spawning tools (TeamCreate, SpawnTeammate, SendMessage, …) when teamEnabled: true is set in .thclaws/settings.json; the tab itself surfaces regardless. See chapter 17 for the team concept.

Settings menu (gear icon)

Click the gear ⚙ in the top-right to open a popup menu:

Item	Opens
Global instructions	Tiptap markdown editor on ~/.config/thclaws/AGENTS.md
Folder instructions	Tiptap editor on ./AGENTS.md (in the working directory)
Provider API keys	Settings modal for keys — see chapter 6
Appearance	Light / Dark / System theme toggle — see below

The Tiptap editor round-trips markdown through tiptap-markdown: you edit in a rich-text UI (headings, bold, lists, code fences), save to disk as markdown, and the agent reads the file on its next turn. No lossy conversion for standard Markdown.

The path shown at the top of the editor is the resolved filename so you always know exactly what you’re editing.

Appearance (Light / Dark / System)

The bottom of the gear menu has three theme options — Light, Dark, System — each with a check next to the active one. Clicking a theme applies immediately and persists to ~/.config/thclaws/theme.json (per-user; never committed with your project). The menu deliberately stays open when you click a theme so you can try all three without reopening the gear.

Light and Dark are explicit overrides — they are honoured even if your OS is set to the opposite scheme. System follows prefers-color-scheme and flips live when the OS appearance changes (macOS Appearance, Linux DE theme, Windows personalization) without an app restart.

The theme covers every surface:

• App chrome (tabs, sidebar, status bar, menus) — via CSS custom properties
• Terminal tab — xterm.js palette swaps live, scrollback preserved
• CodeMirror editor/preview — dark uses oneDark, light uses the default highlighter
• Files-tab Markdown preview — comrak re-renders with the matching palette baked into the iframe

Keyboard shortcuts

These work anywhere in the app (including the Terminal tab):

Shortcut	Action
Cmd/Ctrl+C	Copy selection
Cmd/Ctrl+X	Cut selection
Cmd/Ctrl+V	Paste from clipboard
Cmd/Ctrl+A	Select all (in text inputs)
Cmd/Ctrl+Z	Undo (in text inputs)
Cmd+Q (macOS)	Quit

Inside the Terminal tab specifically:

Shortcut	Action
Ctrl+C	Clear line if non-empty, else SIGINT
Ctrl+L	Clear screen
Ctrl+U	Kill line (standard bash)

Sidebar polling + cross-process updates

The sidebar polls the Rust backend every 5 seconds for config changes, so if you type /model gpt-4o in the Terminal tab, the Chat tab’s active-model display updates within 5 seconds without a restart.

When you save an API key via Settings, both the GUI and any child PTY-REPL can read the keychain entry on the next request — no need to restart either process.

Session sharing

Terminal tab and Chat tab share the same session. History scrolls together; /save in one persists both. If you load a saved session from the sidebar, both tabs reflect it.

Where things are stored

What	Where
Window size	.thclaws/settings.json → windowWidth / windowHeight
Recent working directories	~/.config/thclaws/recent_dirs.json
Secrets backend choice	~/.config/thclaws/secrets.json
API keys (keychain mode)	OS keychain, service thclaws, account api-keys (JSON blob)
API keys (.env mode)	~/.config/thclaws/.env
Sessions	.thclaws/sessions/ (project-scoped) — see chapter 7
KMS (user)	~/.config/thclaws/kms/ — see chapter 9
KMS (project)	.thclaws/kms/ inside the working directory
MCP servers (user)	~/.config/thclaws/mcp.json
MCP servers (project)	.mcp.json or .thclaws/mcp.json

Changing the working directory mid-session

Settings menu → “Change working directory” opens a folder picker. After you pick a new folder, the GUI:

1. cds the process to the new folder
2. Re-initialises the filesystem sandbox to match the new root (see chapter 5)
3. Reloads ProjectConfig from the new project’s .thclaws/settings.json — if the new model differs from the running one, the provider/agent get swapped and a fresh session is minted (the old provider’s message history can’t always reflow into a different provider’s schema; safer to start clean)
4. Rebuilds the system prompt (cwd is embedded in it)
5. Broadcasts a line in Terminal/Chat: [cwd] /new/path → model: X (was: Y) so you can see the swap actually happened

The contract is “project settings win” — the new project’s .thclaws/settings.json overrides every other layer (user config, env vars, the previous session’s effective config) the moment you change directory. If you don’t want a model swap on cwd change, make sure the new project’s settings.json has the same model as before.

When to use CLI instead of GUI

Use the CLI (thclaws --cli) when you want:

• SSH sessions / headless servers (no webview)
• Faster cold start (no webview initialization)
• Scripting / piping with thclaws -p "prompt" non-interactive mode

Everything the GUI exposes is available via slash commands in the CLI — the two are peer UIs on the same engine, not parent/child.

Chapter 3 goes deeper on the working directory, modes, and command-line flags.
